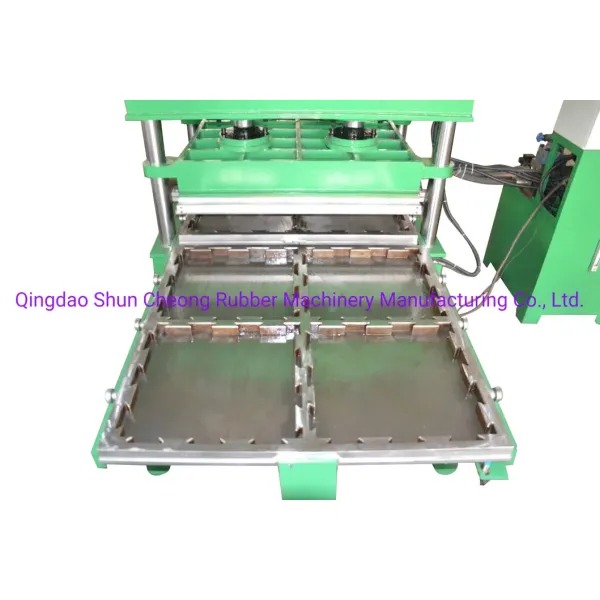

Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine

Brand Name : SFC

Model Number : XLB

Certification : CE, ISO

Place of Origin : Qingdao, China

MOQ : 1 set

Price : US$2,300.00-3,300.00

Payment Terms : T/T,L/C

Supply Ability : 50set/Month

Delivery Time : 25-35 days

Contact Now

Semiautomatic Rubber Vulcanizing Press Machine
Professional machinery for curing rubber tiles and mats using recycled rubber materials, featuring 1200x1200 mm platen size with 2 or 4 working layers.
Product Specifications
Model XLB
Certification CE, ISO, SGS
Structure Horizontal
Working Layers 2 or 4 Layer
Platen Size 1200*1200 mm
Automatic Grade Semiautomatic
Production Capacity 50 Sets/month
Origin Qingdao, China
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Key Features
  • Column type construction with hydraulic cylinder, piston, column, hot plate, track, and mould
  • Manual push-out device with two sets of moulds for high production efficiency
  • Adjustable mould thickness from 20mm to 75mm
  • Optional mixer equipment available
  • High-quality Q-235 carbon steel construction with shot blasting treatment
  • Professional welding techniques including carbon dioxide gas shielded welding
  • Chilled cast iron piston with polishing and grinding treatment
  • Precise temperature control with ±0.1°C tolerance
  • PLC controlled hydraulic system with pressure sensor
Technical Specifications
Type XLB-D550*550*2 XLB-D660*660*2 XLB-D1200*1200*2
Total Pressure (MN) 0.50 1.00 3.15
Plate Size (mm) 550 660*660 1200*1200
Working Layers 4 2 2(4)
Piston Stroke (mm) 400 250 250(500)
Motor Power (kw) 3 3 5.5
Weight (kg) 3600 3500 9500
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile MachineHeating & Temperature Control
Steam, oil, or electric heating options available. Temperature range: 0-300°C (extendable to 400°C). Advanced water cooling system available.
Custom Manufacturing
We design and manufacture various kinds of non-standard rubber machinery according to client requirements.
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Floor Tile Vulcanizer/Rubber Playground Tile Making / Recycled Rubber Tile Machine
Company Capabilities
Professional R&D institution using CAD-aided design. Our machines are exported worldwide including United States, Chile, Europe, Africa, Southeast Asia, and Middle East.
Product Range
  • Mixing Equipment: Rubber Kneader, Two Roll Mill, Rubber Sheeting Mill, Rubber Refining Mill, Rubber Crusher
  • Curing Equipment: Pillar/Frame Type Plate Vulcanizing Press, Duplex Curing Press, Jaw Vulcanizing Press Machine, Large Plate Vulcanizing Machine
  • Extruding Equipment: Hot Feed Extruder, Rubber Strainer, EPDM Rubber Extrusion & Vulcanizing Line
  • Calender Equipment: Two Roll Calender, Three Roll Calender, Four Roll Calender, Inner Liner & Rubber Calender Line
  • Waste Tires Recycling Equipment: Semi-automatic and Full-automatic Waste Tires Recycling Lines
  • Other Equipment: Reclaimed Rubber Production Line, Batch-Off Cooler, Conveyor Belt Splicing Press
Contact Information
WhatsApp: +8618344700139
Email: rubbermachine@sfcjx.com
Welcome to visit our factory!
