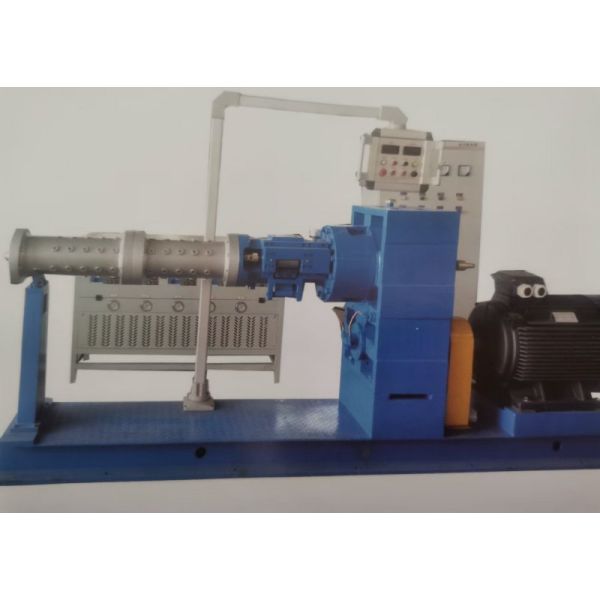

XJ-65 Cold Feed Rubber Extruder Machine with 65mm Screw Diameter and 50-80 KG/H Capacity for Auto Parts

Brand Name : SFC

Model Number : XJ-65

Certification : ISO9001/CE/SGS

Place of Origin : China

MOQ : 1 Set

Price : 6,999.00-69999.00 USD per Set

Payment Terms : T/T

Supply Ability : 50 Sets per Month

Delivery Time : 45 days

Packaging Details : wooden cases or container

Diameter Of Screw (mm) : 65

Length diameter ratio of screw : 4

Screw Rotation Speed (RPM) : 20,27,35,47

Motor Power (KW) : 7.5

Capacity (KG/H) : 50-80

Feeding Dimension (mm) : 80×50

Hot Water Circulation Section : 3

Warranty Period : 1 year

Mode Of Production : Support Customization

Contact Now

Cold Feed Rubber Extruder Machine 4 Screw For Auto Parts
XJ-65 Cold Feed Rubber Extruder Machine 4 Screw For Auto Parts
Product Introduction
  • This machine is widely used for rubber strips, seals, rubber pipes, auto parts, wires and cables, tires, belts and other rubber products extrusion molding
  • Features energy saving, high efficiency, and excellent product quality
  • Characteristics include energy saving, high productivity, good plasticization, and refined glue quality
  • Can be equipped with various extrusion heads as required by users
  • Machine body includes temperature measuring and indicating device
  • Feeding zone is equipped with side rolls for enhanced feeding capability
  • Customizable according to customer needs

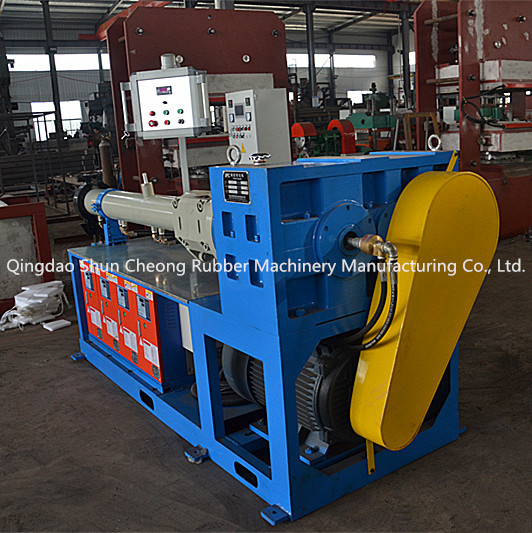

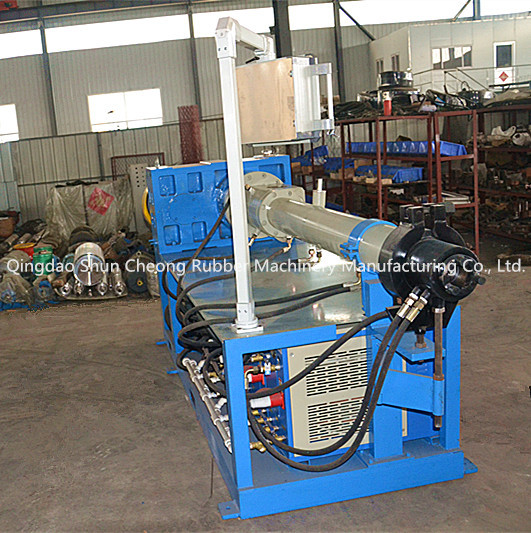

Product Photos
Product Parameters
Model XJL-65 XJL-115B XJL-120 XJL-150 XJL-200 XJL-250
Forms of screw and screw thread Double-head equal-depth convergent type Double-head convergent type Double-head convergent type Double-head unequal-depth convergent type Double-head convergent type Double-head convergent type
Screw diameter (mm) 65 115 120 150 200 250
Length-diameter ratio of screw (L/D) 4 4.8 4.6 4.43 4.35 4.5
Compression ratio 1.3 1.34
Rotary speed of screw r/min 5.2-52 5.4-54 5.6-55.6 20-26 22.4-67.2 19.7-59.1
Motor power (KW) Electromagnetic speed 7.5KW Electromagnetic speed 22KW Electromagnetic speed 22KW Frequency control 55KW/Motor commutator 8.3-55KW 25-75 Motor commutator Motor commutator 33.3-100
Production capacity kg/h 50-80 100-420 100-450 700-1200 1500-2200 2000-3200
Stream pressure (Mpa) 0.2-0.3 0.4-0.6 0.2-0.4 0.6 0.6-0.8 0.6-0.8
Cooling water pressure (Mpa) 0.2-0.3 0.2-0.3 0.2-0.4 0.2-0.3 0.2-0.3 0.2-0.3
Overall: L×W×H (mm) 1750×550×1100 2390×760×1450 2427×750×1330 3411×814×1470 4564×1800×1750 4950×1150×1483
About Us
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is a Chinese manufacturer established in 2007, with over 10 years of experience in making various rubber machines. The company holds ISO 9001:2008, SGS, and CE certificates.
Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing press; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line; reclaimed rubber production line; conveyor belt production line; rubber seals extruding & vulcanizing line, etc.
Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries and regions.
Our Service
  • Our engineers can design target machines for customers and send drawings for confirmation
  • During production, we provide progress photos for customer tracking
  • Complete documentation including packing list, commercial invoice, and bill of lading provided after delivery
  • Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing
  • Overseas engineer service and worker training for machine operation
